Dimension Tool- Option for Pitch

Under Review

I think a dimension tool that allowed for rise and run would be good. This way if we wanted to know the length of a pitched roof or ridge we wouldn't have to use the linear or segment tool.

Heber Allred zzTakeoff4d 11h

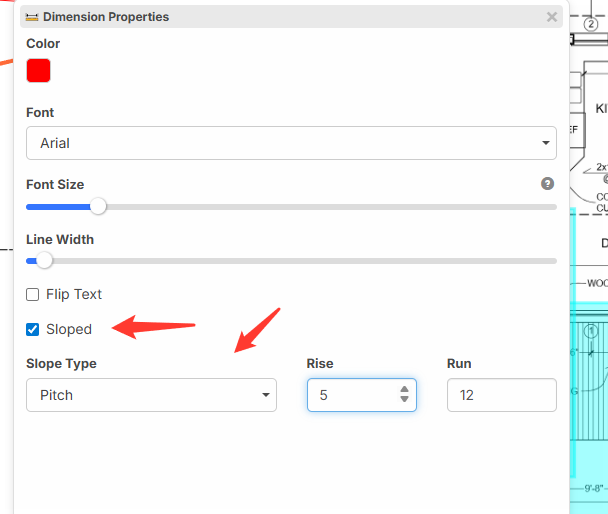

Good idea. Is this what you had in mind, just check the box for "Sloped" and the slope options show up? We could make it a dropdown so they could say "Flat Dimension", "Sloped Dimension", and "2 Slopes" (for rafters at the intersection of 2 roof planes)?

Todd Kaberline zzTakeoff4d 11h

yes please!

James Allred zzTakeoff4d 11h

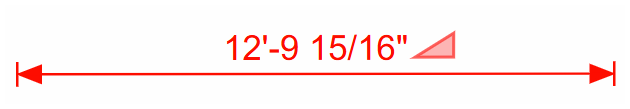

Might be nice to have some kind of indicator that it's a sloped dimension. Yes, I used the area tool to make this mockup :)
