Steve Golubov Interrupted Line with Short & Long Dashes
Hi
There are in architectural and even in civil works measurements with interrupted lines with Short & Long Dashes (or both) for easier viewing and guide in the interest of helping people (the client) understand and can tell what they're looking at.
For beater organization would be possible to have also an option for Linear and Segment measurements with Short & Long Dashes (or both) please?
Hi Steve!
Thank you for submitting this request. Can I get a little more clarification on what you'd like to see?

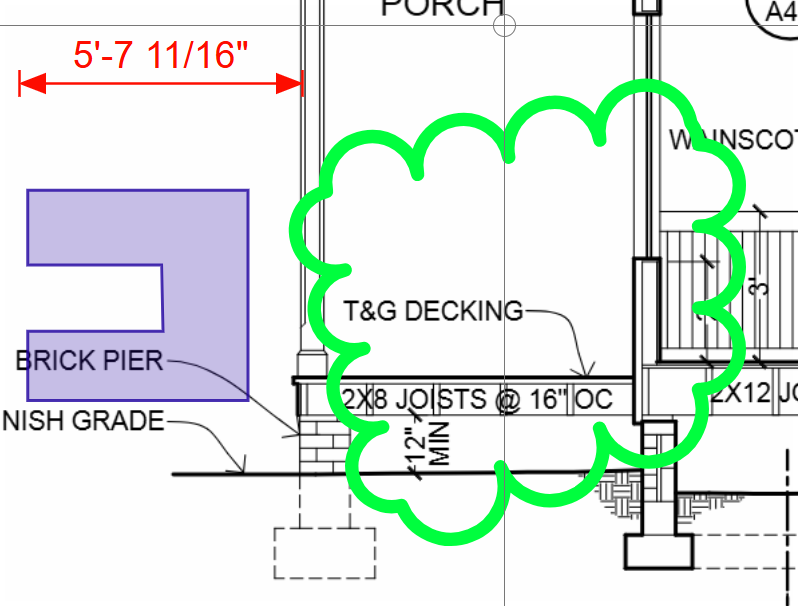

I believe I understand what you mean by interrupted lines... Similar to these shown on this plan, correct?
You mention Linear and Segment measurements. But just for clarity, are you wanting this for other takeoff tools as well?
Area (shown in blue), Dimension (shown in red), Cloud (shown in green), or anything else?
I'll pass your request on to the development team, but if you're able to provide a little more info that would be helpful.
Hi James,
Only when needed see bellow and also the legend bottom right.
The Linear and Segment tools are currently performing perfectly. As shown in the drawing, interrupted lines represent IJ (Isolation Joint), DJ (Dowelled Joint), and PTDJ (Pour Trough Dowelled Joint). If measurements could be taken directly as depicted on the drawing, it would be easier to distinguish your measurements without obscuring them with continuous lines. Therefore, I request an additional option for the Linear and Segment tools that allows measurement inputs displaying the measurements as on the legend in accordance with the drawing’s requirements (continuous or interrupted line) when the estimator chooses to use these measurement tools.
Thank you for the clarification. I'll send this over to the developers for review.
