Layout legend and shapes

In Progress

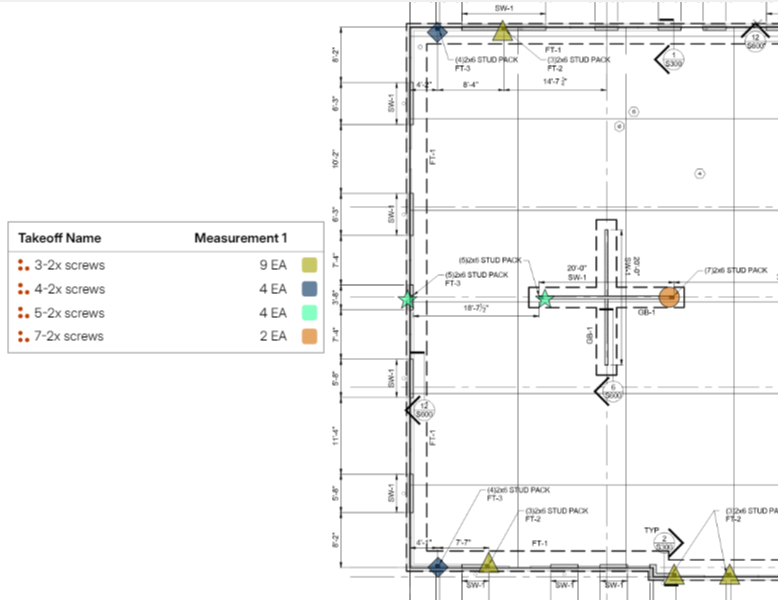

The legend does not currently show the correct shape assigned to each item. The layout shows the shapes correctly. See snippet below.

On a large project, we may use the same color on multiple items but use different shapes, we need the legend to reflect this. Is this possible?

Planswift does show the symbol on the legend, see second snippet below from a Planswift layout.

Darin Thomas zzTakeoff8h 37m

I really like this idea Dwayne! Thank you for posting!

Heber Allred zzTakeoff8h 15m

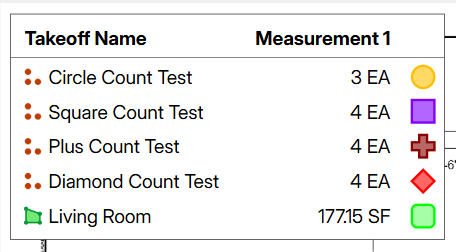

Thanks guys. Maybe something like this 🙂 We'll plan to have it in our next release (coming soon).

Dwayne Brown 8h 13m

Yes this would be great!

Casey Wilson 8h 5m

Prefect. This will be super helpful!!
