Modify size of dimension bar's font and arrow bars

Completed

Would like to be able to modify the size of the dimension arrows and the font of the figure that is displayed (from the dimension tool). Sometimes on the plans I work with they come out a little too large, or maybe a toggle to make them a little transparent would work too

Heber Allred zzTakeoff93d 21h

Thanks for the input Jes. We're in process adding "Font" to the "Note" annotation right now. We'll go ahead and add some additional properties for the Arrow as well.

Sam Romeo zzTakeoff17d 13h

Great news! The features we discussed are now live in our latest release! 🎉

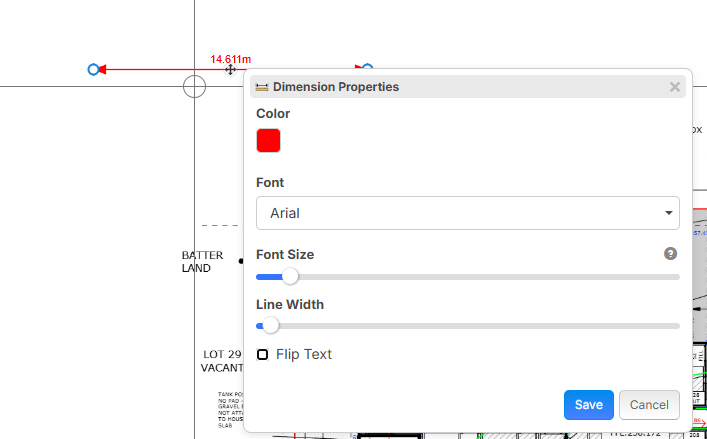

Just select the dimension Right Click on the Dimension select Properties and Modify appropriately
