Triangulate Tool or Angle Finder

Excellent feature request. Passing along to the development team.

Any update on this?

Will this be released in an upcoming update?

Hi, I'm not aware of this in a coming update. Please feel free to discuss the details of how you think this could work so that the developers can review and plan a release.

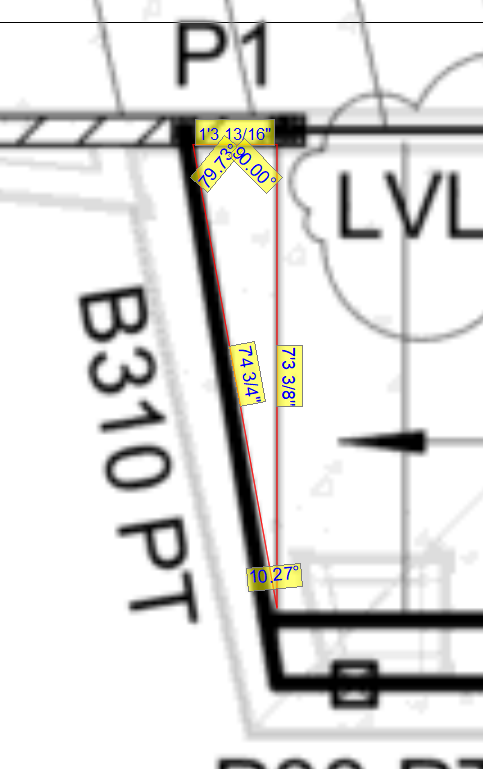

Planswift has a tool called Triangulate that will simply find angles on skewed objects. In the screenshot below from Planswift, we have a beam that is not 90° to the wall and will require custom hangers. We use the Triangulate tool to find the specific angle of the beam.

If we added a triangulate tool, and you click 3 points, would you expect the triangle shape stays visible on the plan page as an annotation, or would it just show the lengths and angles, and then disappear after you begin scrolling or zooming?

The triangle would stay visible but can be deleted.

Does this look like a good format / layout? Any other options you would like to see on this tool besides font size & color?

I think this is great!

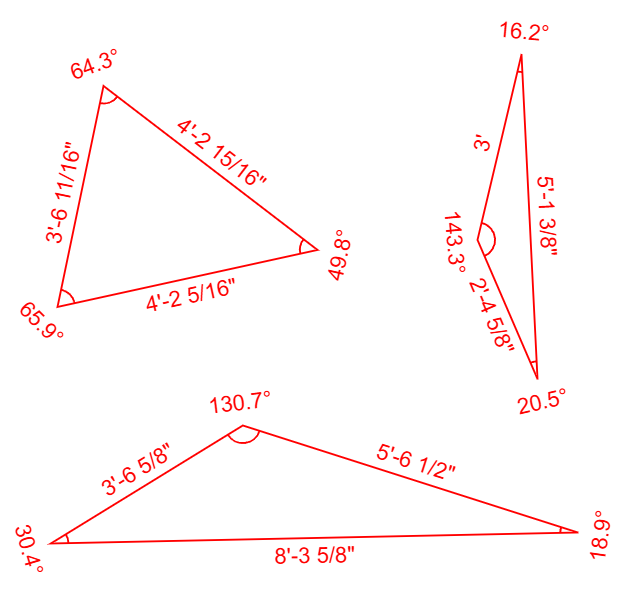

What do you guys think of this design? It moves the angle text to the outside for easier readability on tight angles (avoids text overlapping the lines). Do you think it's clear enough that the angle is for inside the triangle vs outside (even though the text is outside).

Looks great to me, I do not think this will be an issue. Planswift put the angle on the inside but it looks cluttered.

Perfect, it clearly shows both the angles and the distances. I love it.
