Feature RequestsAngle Joints for Rigid Pipe Runs
If this idea is crazy, it's ZZ's fault for redefining the takeoff world as we used to know it!
In the world of rigid pipe, every angle deviation or intersection is one of a limited number of joint options (with related fittings). Can the linear pipe takeoff line angles be accessed/referenced in formulas such that what ever angles exist then the correct angled elbow + fittings could be added as sub-assembly parts?

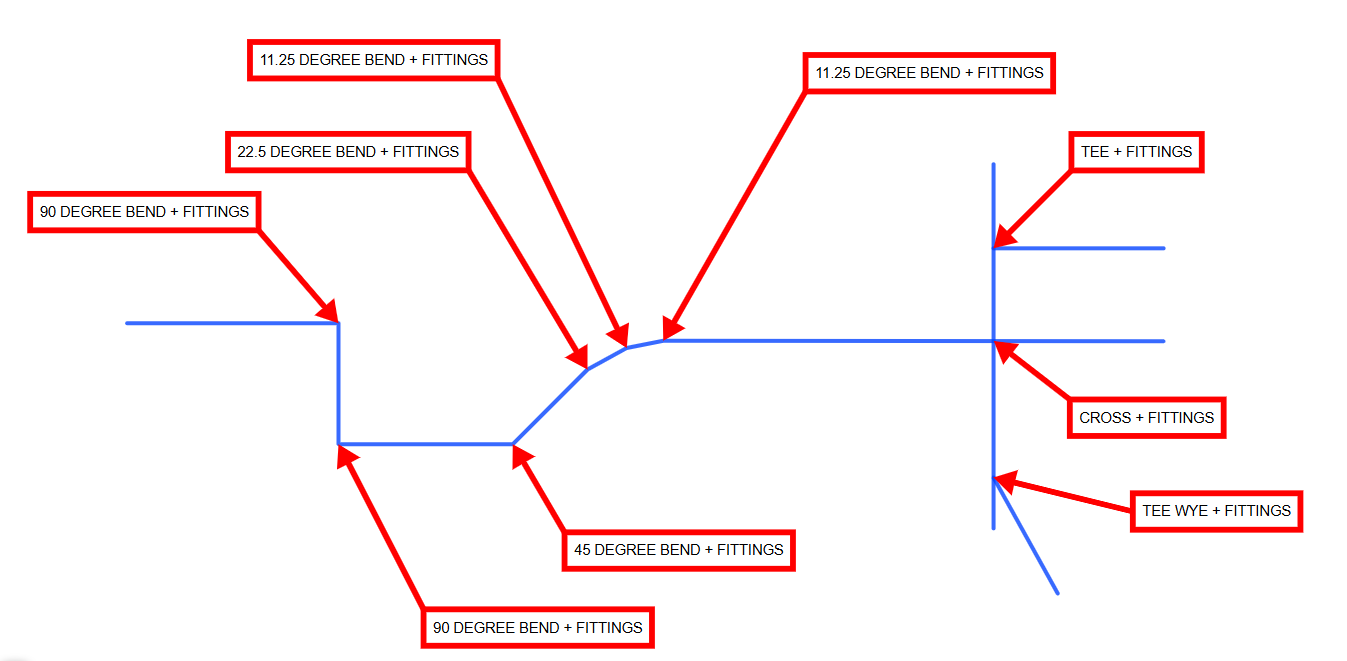

While I'm dreaming that angled pipe lines (blue lines in attached image) are doable, I've included intersections (TEE, CROSS & TEE WYE) of separate takeoffs in the attached image to dream even higher. Happy Friday ZZ Dev Team!
An additional point of clarity, there are bend deviations (arcs) in some long pipe runs but the circumstances I am interested in would occur at angles between straight lines.
This would be awesome, thanks for the feature request, Doug!! We've had a few discussions about how to do this internally, so this is something that is on our radar. 🙂
