Electrical One-Line Diagram with a single Claude prompt. 💡

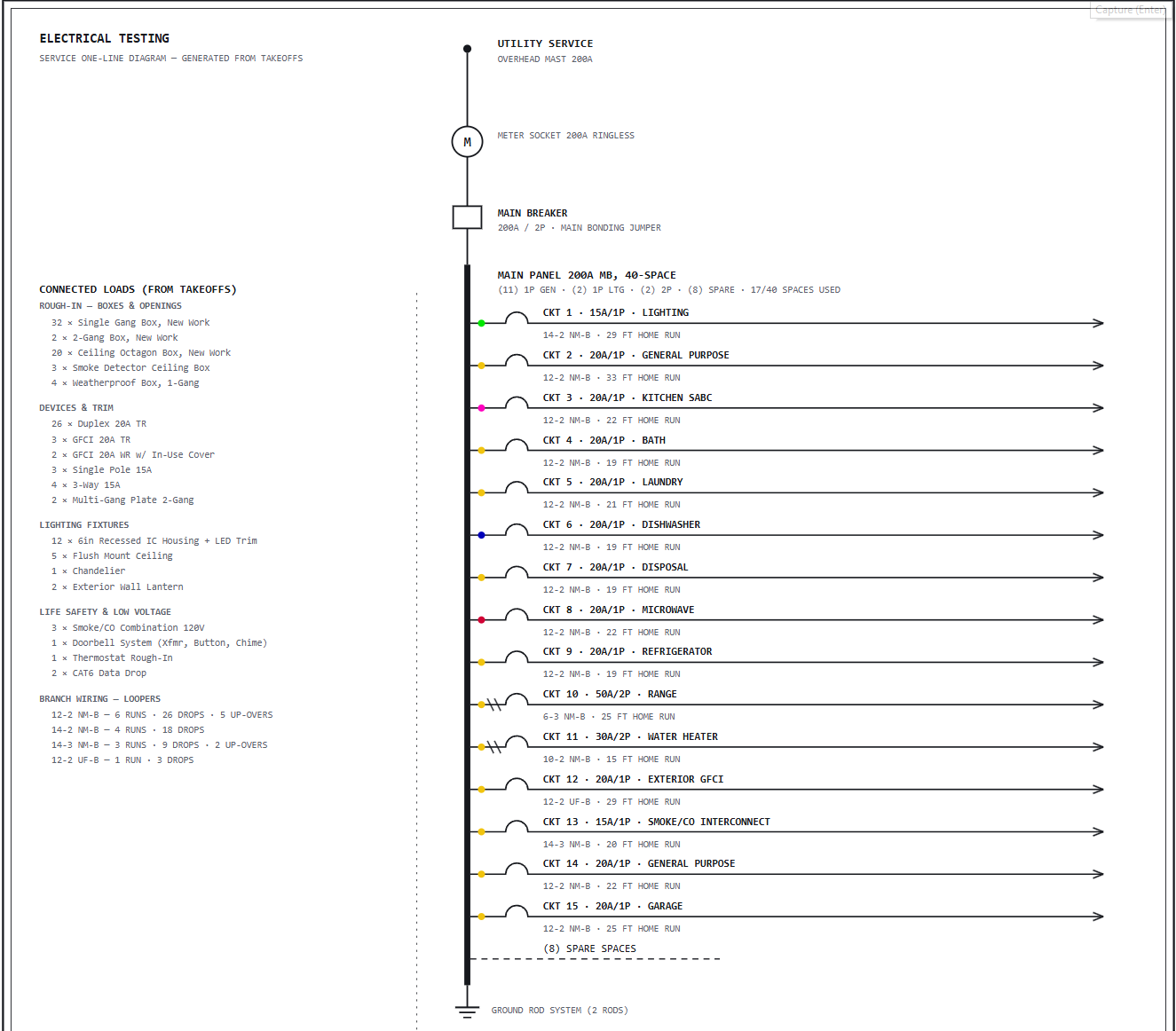

Utilizing the MCP connector, I asked Claude to create me a One-Line diagram of the electrical project I had open. Not only did it create it, but went so far as to hyperlink each circuit to the homerun takeoff. This is wildly impressive what you can do now with just one request! This is for a residential project, but if it was on a commercial one it would be even more incredible to view.

Claude created my templates, did the takeoffs, and created the One-Line diagram!
